How Super-Heated Steam Drying Makes Better, Softer Beef Jerky

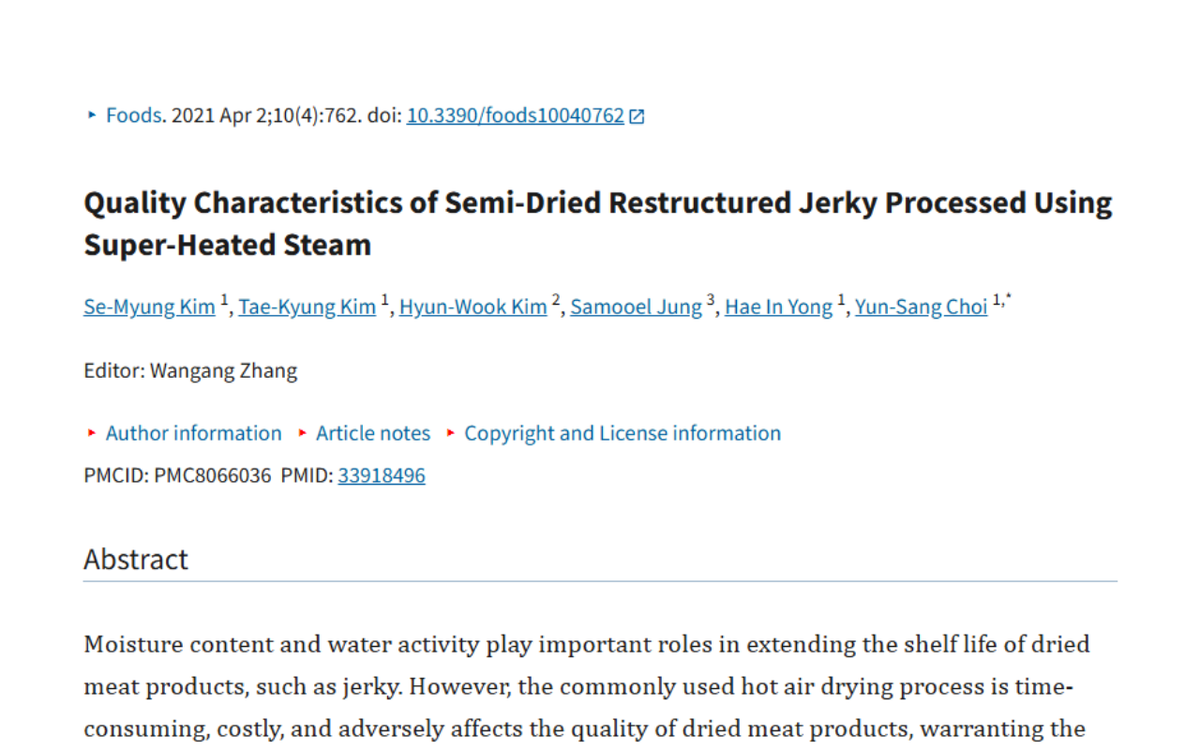

The study “Quality Characteristics of Semi-Dried Restructured Jerky Processed Using Super-Heated Steam” by Kim et al. (2021) investigates innovative ways to improve commercial snack production. Restructured beef jerky is a hugely popular treat made by grinding meat, mixing it with spices, and forming it into uniform shapes. However, mass-producing these snacks using traditional hot-air ovens is incredibly slow and consumes massive amounts of electricity. To solve this, researchers tested super-heated steam drying, a technology that uses incredibly hot, waterless steam to cook and dry food simultaneously. By comparing this modern steaming method with conventional hot-air drying, scientists measured how the intense heat affected the meat’s chewiness, moisture levels, and overall flavor. The results of this scientific paper provide a clear blueprint for how food companies can upgrade their facilities to produce softer, safer snacks while drastically reducing energy waste.

When you buy a bag of beef or pork jerky, you expect a satisfying, flavorful chew that lasts a long time in your pantry. To keep these snacks safe on the shelf, factories must remove a specific amount of water from the meat. The scientific paper notes that “moisture content and water activity play important roles in extending the shelf life of dried meat products.”

Currently, the food industry relies almost exclusively on hot-air drying. Unfortunately, hot air has very low thermal conductivity, so it takes a long time for heat to penetrate the center of the meat. This makes hot air drying incredibly time-consuming and expensive. Furthermore, blowing hot, dry air over meat for hours causes “case hardening.” This happens when the outside of the meat dries into a tough, leathery crust, trapping moisture inside and ruining the texture.

To fix this, scientists are turning to Super-Heated Steam (SHS). This technology uses steam heated far beyond its normal boiling point (between 100 and 400 °C). Because it is entirely steam, it acts differently than dry air. The researchers point out that “SHS can save energy as high as 50–85% over hot air drying by recycling the evaporated high-temperature steam.” Furthermore, because the steam environment contains zero oxygen, it prevents essential nutrients from breaking down.

To see if this technology could actually make a better snack, the researchers sourced fresh pork ham (specifically the hind leg muscles) from a local butcher. They removed any visible connective tissue and ground the lean meat using a commercial meat grinder.

The researchers created a meat batter by mixing the ground pork with a precise recipe of ingredients, including salt, phosphate, duck skin gelatin, carrageenan, sugar, soy sauce, onion powder, garlic powder, and black pepper. They also added a very small amount of sodium nitrite (0.005%), which is a standard preservative used in cured meats.

The meat batter was stuffed into long cellulose casings to create uniform, sausage-like shapes. All the meat was initially heated at 55 °C for 90 minutes to set its shape, and then the casings were peeled off. The researchers then split the meat into two testing groups:

• The Control Group: Dried using standard hot air in a chamber (starting at 55 °C and slowly rising to 80 °C over several hours).
• The Treatment Group: Dried using a commercial SHS machine. The researchers tested three steam temperatures (200, 250, and 300 °C) and three time limits (90, 105, and 120 minutes) to find the optimal combination.

After the meat cooled, the scientists ran extensive tests on the moisture levels, physical chewiness, chemical preservatives, and overall color.

The study found that steam temperature strongly influenced how much moisture remained in the meat. The lowest temperature (200 °C) left the meat way too wet, retaining about 50% of its moisture, which is unsafe for storing at room temperature. On the other hand, the highest temperature (300 °C) blasted the moisture away too quickly, turning the meat into a brittle, overly dry stick. The middle temperature of 250 °C provided the perfect balance, achieving safe moisture levels without ruining the meat.

When using hot air, the outside of the meat turns into a tough shell. With SHS, the extreme heat boils off moisture from inside the meat, pushing it out rapidly. Using a powerful microscope known as Scanning Electron Microscopy (SEM), the researchers observed that escaping steam created tiny pores and cracks throughout the meat. This porous structure completely prevented the tough outer crust from forming. When tested with a mechanical cutting blade, the steam-cooked meat required significantly less force to cut through, indicating it was much tenderer than the hot-air control group.

Sodium nitrite is used to keep processed meats safe and pink, but high amounts are frowned upon by health experts. The scientific paper found that the steam's intense heat caused the residual nitrites in the meat to break down rapidly. The control group had 12.18 parts per million (ppm) of residual nitrite, whereas the steam treatments reduced it to between 1.78 and 4.68 ppm. This means the steamed snack is chemically safer to consume.

To ensure the science translated to human taste buds, a panel of 33 trained sensory experts taste-tested the jerky. They scored the snacks using a 9-point scale based on a specific list of criteria:

• Color
• Flavor
• Texture
• Juiciness
• Overall Acceptability

The experts concluded that the meat dried with steam at 250 °C for 120 minutes was the absolute best. The oxygen-free steam prevented the fats from going rancid, keeping the flavor fresh, while the porous texture provided a highly satisfying chew.

The implications of this scientific paper are massive for large-scale food manufacturing. Changing from hot air ovens to steam systems can drastically reduce a factory’s electricity bills due to the incredible 50–85% energy savings.

Beyond cost savings, this method is highly eco-friendly. When using hot air, factories vent strong food odors and exhaust into the atmosphere. With SHS, factories can condense the exhaust steam back into water, allowing them to more easily trap and filter out dust and toxic compounds rather than polluting the local environment. Because it also creates a softer, safer product with fewer preservatives, companies can market a higher-quality snack to health-conscious consumers.

This scientific paper proves that upgrading to advanced steaming technology solves the biggest problems in dried meat manufacturing. By using superheated steam at 250 °C for exactly 120 minutes, food processors can successfully eliminate the tough, leathery textures caused by traditional hot air ovens. This method rapidly locks in flavor, safely reduces chemical preservatives, and slashes energy costs, making it a highly valuable and sustainable upgrade for the future of commercial food production.
