How Brine Injection for Beef Jerky Improves Quality and Drying Time

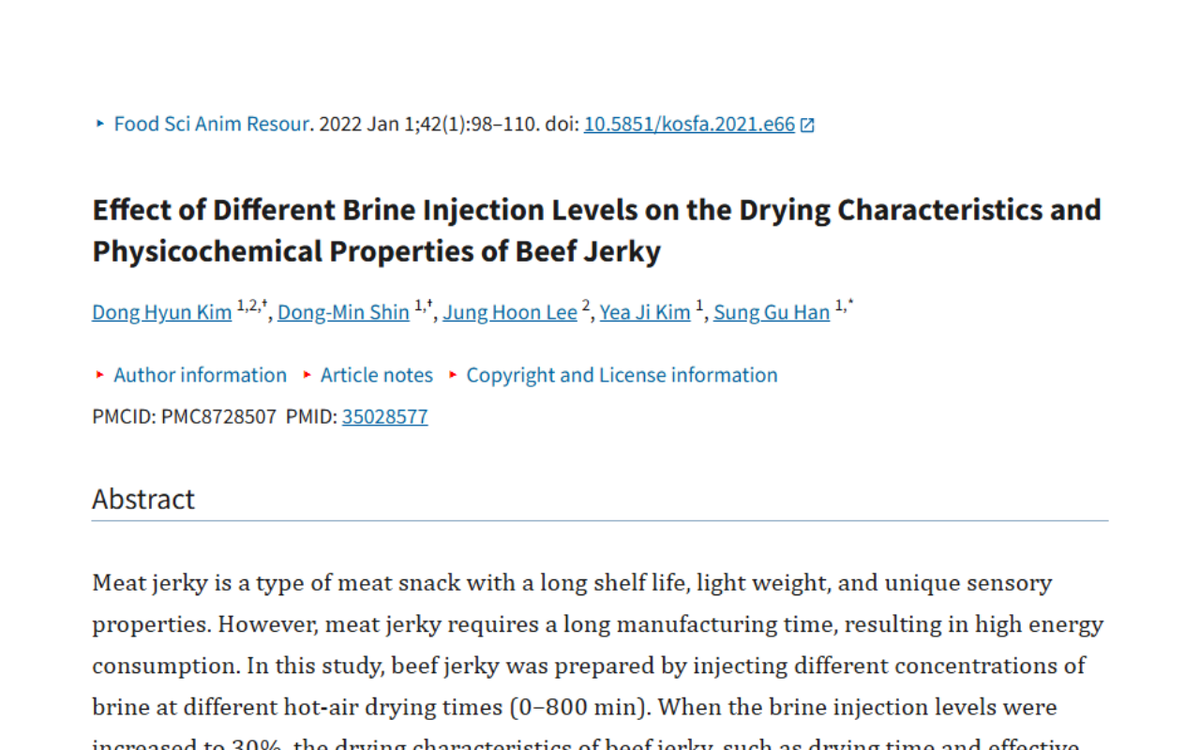

The study “ Effect of Different Brine Injection Levels on the Drying Characteristics and Physicochemical Properties of Beef Jerky ” by Kim et al. (2022) dives into the specific challenges of mass-producing dried meat. Jerky is a fantastic snack because it is lightweight, high in protein, and lasts a long time without refrigeration. However, making it requires hours of hot-air drying, which consumes a massive amount of electricity and often ruins the texture. The authors of this scientific paper wanted to see whether using a saltwater injection for beef jerky could alter the meat's internal structure for the better. By tracking how fast the water evaporated and testing the final chewiness of the snack, the researchers provided a clear roadmap for creating a superior product in significantly less time.

Have you ever wondered why some meat snacks are so tough to chew? When meat is dried using traditional hot air, the heat causes the muscle fibers to shrink and harden. As the outside of the meat gets dry and tough, it actually traps the remaining moisture inside. This means the factory ovens have to run for a very long time to completely dry the center of the meat. This long drying time causes many problems. It leads to heavy shrinkage, tough textures, darker colors, and a massive waste of electricity.

To solve this, scientists looked at a common meat processing technique: needle injection. Usually, a machine with tiny needles injects a saltwater solution (brine) into the meat to make it juicier and more flavorful. However, it seems strange to add more water to a product you are trying to dry out. Why would you do that? The researchers hypothesized that adding extra water might change the meat's physical structure. They believed that as the extra water evaporated in the oven, it would leave behind tiny empty tunnels, or pores. These pores would allow heat to enter faster and the remaining moisture to escape more quickly. This scientific paper tests that exact theory to see if adding more water upfront actually saves time in the end.

To gather highly accurate data, the research team designed a controlled experiment using frozen beef purchased from a local market. After thawing the beef, they carefully trimmed away all the visible fat and connective tissue.

The researchers then divided the meat into four distinct test groups:

• 0% Brine (The Control): 100% beef with no added water.
• 10% Brine: 90% beef and 10% saltwater.
• 20% Brine: 80% beef and 20% saltwater.
• 30% Brine: 70% beef and 30% saltwater.

To get the saltwater inside, the scientists used a special meat injector machine equipped with needles. Afterward, the meat was placed in a meat tumbler, a machine that rotates the meat for an hour to ensure the saltwater is evenly absorbed by the muscle fibers. The meat was then sliced into uniform pieces and placed in a convection oven set to 85 degrees Celsius.

The researchers closely monitored the Moisture Content (MC) and the Drying Rate (DR) over several hours. To evaluate the final product, they used precise laboratory tools. They used a texture analyzer with a mechanical blade to measure the shear force (how hard it is to bite through the meat). They also used an advanced microscope, known as Field-Emission Scanning Electron Microscopy (FE-SEM), to zoom in on the microscopic structure of the dried meat.

The most surprising discovery was that adding more water drastically reduced the time the meat needed to spend in the oven. The meat with no brine took 4.67 hours to dry properly. However, the meat with a 30% brine injection took only 3 hours. That is a massive 35.7% reduction in baking time. The extra water increased the initial Moisture Content, accelerating evaporation from the start.

The scientists measured something called E ffective Moisture Diffusivity (Deff), which quantifies how easily water travels from the center of the meat to the surface. The beef injected with 30% brine had the highest Deff score. Because the saltwater expanded the muscle fibers, moisture had a much easier time escaping the meat during the hot-air drying process.

Nobody likes jerky that breaks their teeth. The mechanical texture analyzer proved that the brine injection made the meat significantly softer. The shear force required to cut the meat was the highest in the control group and the lowest in the 30% brine group. The researchers noted that the injection process prevented a hard, leathery outer layer from forming on the meat.

When meat is left in a hot oven for too long, proteins break down, causing the meat to turn dark and taste slightly stale. The scientists measured Volatile Basic Nitrogen (VBN), which is a chemical that indicates meat deterioration. Because the 30% brine group spent much less time in the oven, it had the lowest VBN levels, meaning it stayed fresher. Additionally, the International Commission on Illumination (CIE) color tests showed that the injected meat stayed significantly lighter and more appetizing in appearance.

To understand exactly why these improvements occurred, the researchers examined the meat under the FE-SEM microscope.

The images provided clear physical proof of their theory. The scientific paper states, “the beef jerky structure became porous and irregular during the brine injection process.” The 20% and 30% groups had highly visible cracks and pores inside the muscle tissue. These tiny tunnels served as escape routes for steam, preventing the meat from shrinking too tightly and keeping the final snack wonderfully tender.

The implications of this scientific paper are incredibly positive for both food manufacturers and everyday consumers. For factory owners, running industrial ovens for nearly five hours per batch is incredibly expensive and bad for the environment. By utilizing a 30% brine injection, factories can cut their oven time by over an hour and a half per batch. This allows them to produce much more food in a single day while drastically slashing their electricity bills and reducing their carbon footprint.

For consumers, this method solves the biggest complaint about dried meat snacks: the tough texture. By forcing the meat to form a porous, open structure, the final product is much easier to chew and digest. Furthermore, because the meat spends less time roasting in the hot air, it retains a fresher flavor and a more appealing color, making it a much higher-quality product on the grocery store shelf.

This comprehensive scientific paper proves that sometimes the solution to a complex problem is completely unexpected. While it may seem counterintuitive to add water to a product you are trying to dry, the science clearly shows that a 30% brine injection fundamentally improves the meat. By opening up the muscle fibers and creating microscopic steam tunnels, this clever processing trick safely speeds up manufacturing, lowers energy costs, and delivers a beautifully tender and flavorful snack for everyone to enjoy.
